| IP명 | 8-Channel Implantable Neural Stimulation System with Low Standby-Power and High Energy-Efficiency | ||
|---|---|---|---|
| Category | Mixed | Application | Biomedical Application |
| 실설계면적 | 5㎛ X 6㎛ | 공급 전압 | 0~12V |
| IP유형 | Soft IP | 동작속도 | 320kHz |
| 검증단계 | Simulation | 참여공정 | HM-2301 |
| IP개요 | This study proposes a stimulation system that operates stably at a wide power supply voltage from 3.3V to 12V with a 0.18um 1.8V/3.3V process. The proposed system includes a structure that minimizes standby power and residual charge to solve safety problem that occurs at the human interface. In addition, an arbitrary waveform stimulation mode is adopted to increase energy-efficiency. | ||

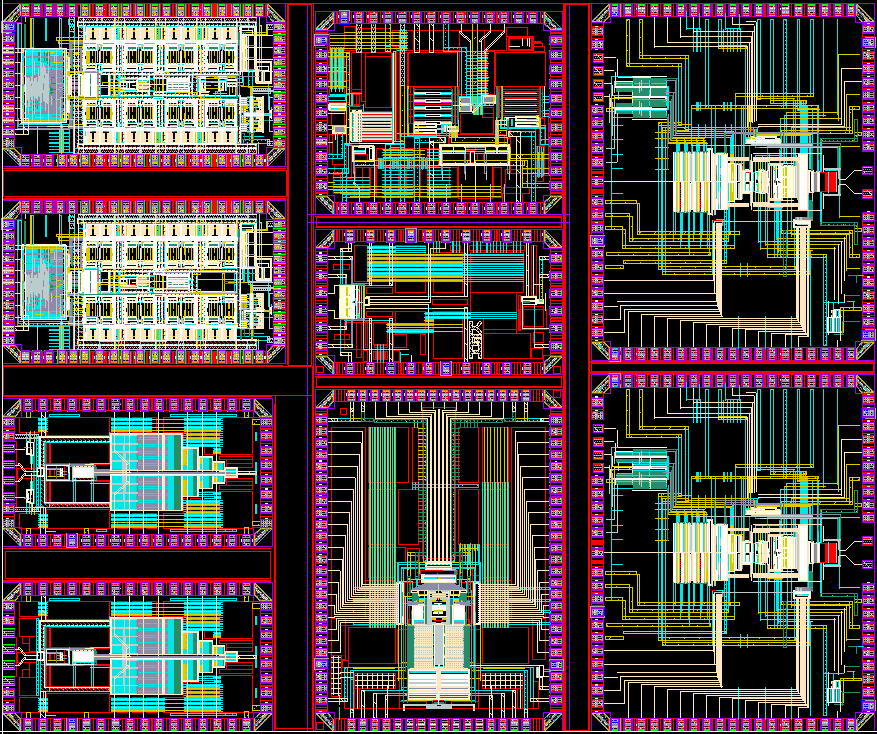

- 레이아웃 사진 -
|
|||
