IP명 | A Hybrid DC-DC Converter employing USB-Cable Inductance for Quick Battery Charger Applications | ||
---|---|---|---|
Category | Analog | Application | Battery Charger |
실설계면적 | 2.85㎛ X 2.85㎛ | 공급 전압 | 5V |
IP유형 | Soft IP | 동작속도 | 1MHz |
검증단계 | Silicon | 참여공정 | HM-2102 |
IP개요 | The proposed hybrid converter is implemented in a 180nm BCDMOS process, with the output power up to 15 W. The proposed hybrid converter can achieve high efficiency compared to the switched-capacitor converter but can regulate the output voltage which cannot be obtained in the switched-capacitor converter structure. | ||

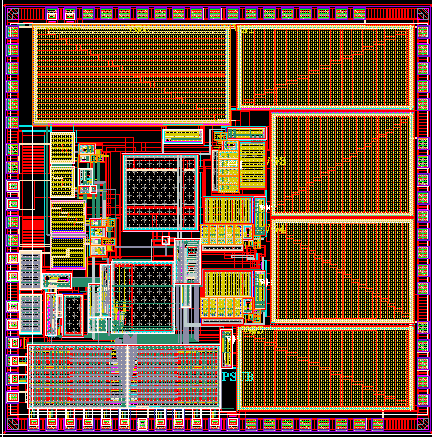

- 레이아웃 사진 - |
