IP명 | Cryogenic Frequency Synthesizer featuring <2kHz of Frequency Noise | ||
---|---|---|---|
Category | RF | Application | Quantum Computer |
실설계면적 | 1㎛ X 1㎛ | 공급 전압 | 1.2V |
IP유형 | 동작속도 | 18000Hz | |
검증단계 | Silicon | 참여공정 | HM-2301 |
IP개요 | The submited design features low in-band phase noise of -98 dBc/Hz at 200 kHz offset, low out-band phase noise of -139 dBc/Hz at 20 MHz offset, integrated RMS jitter from 10 kHz to 40 MHz is only 115 fs for the frequency synthesizer with 100 MHz reference frequency. From 1.2V power supply, the circuit consumed 10 mA of current. | ||

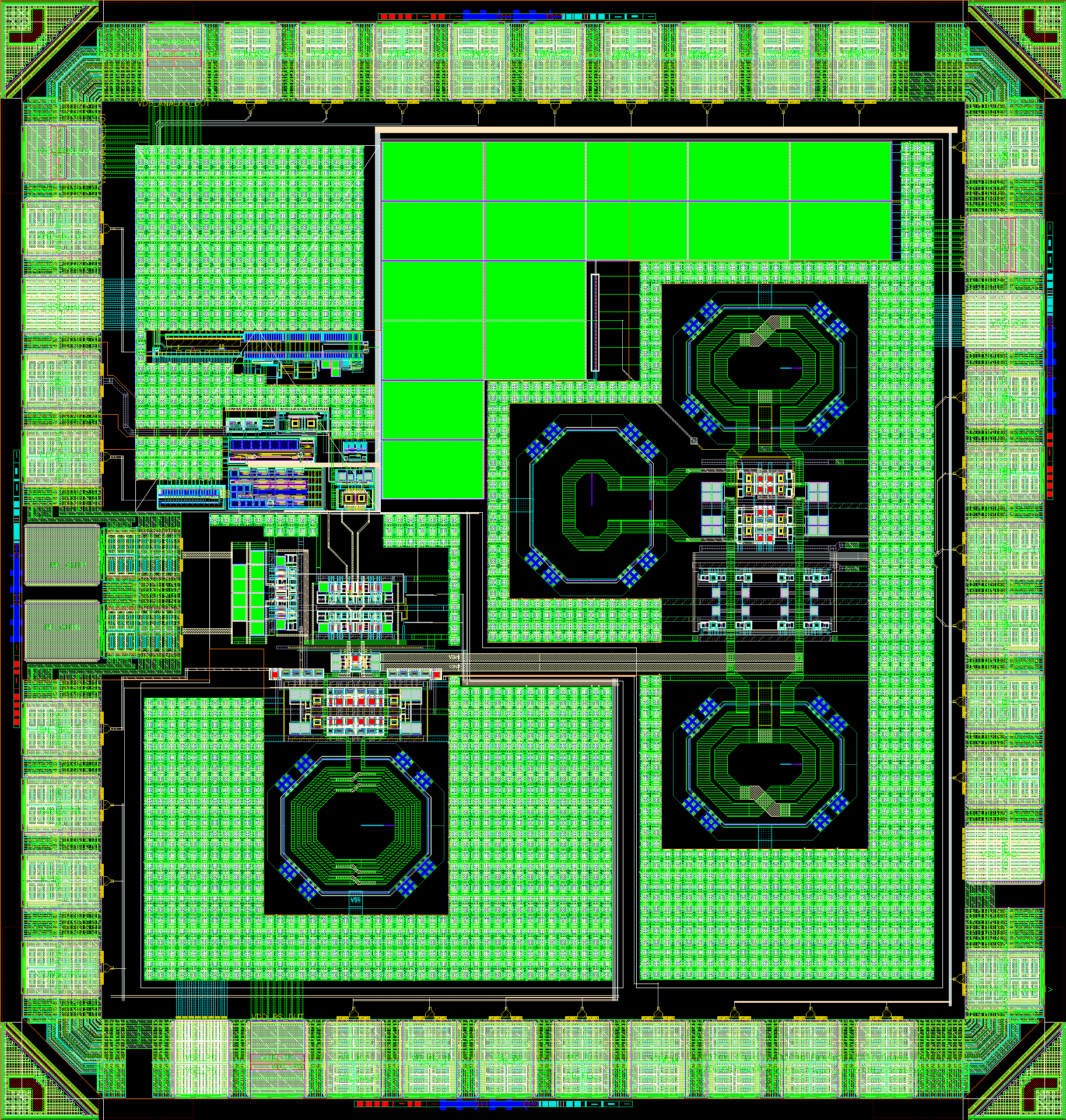

- 레이아웃 사진 - |
