| IP명 | Ka-band RF Transceiver with the Reflection Type Phase Shifter for 5G Base Station Applications | ||
|---|---|---|---|
| Category | RF | Application | 5G base station |
| 실설계면적 | 3㎛ X 4㎛ | 공급 전압 | 1,2.5VV |
| IP유형 | Hard IP | 동작속도 | 28 GHz |
| 검증단계 | Silicon | 참여공정 | HM-2003 |
| IP개요 | This study presents a ka-band RF channel with reflection type phase shifter for the phased array system in 65-nm CMOS process. In order to minimize the Tx/Rx in-band gain ripple and adjust the beam shape precisely through the continuous phase control, the reflection type phase shifter is employed. In addition, to cover the fifth generation frequency range of 26.5 to 27.5 GHz, the wideband power amplifier and wideband low noise amplifier are employed. | ||

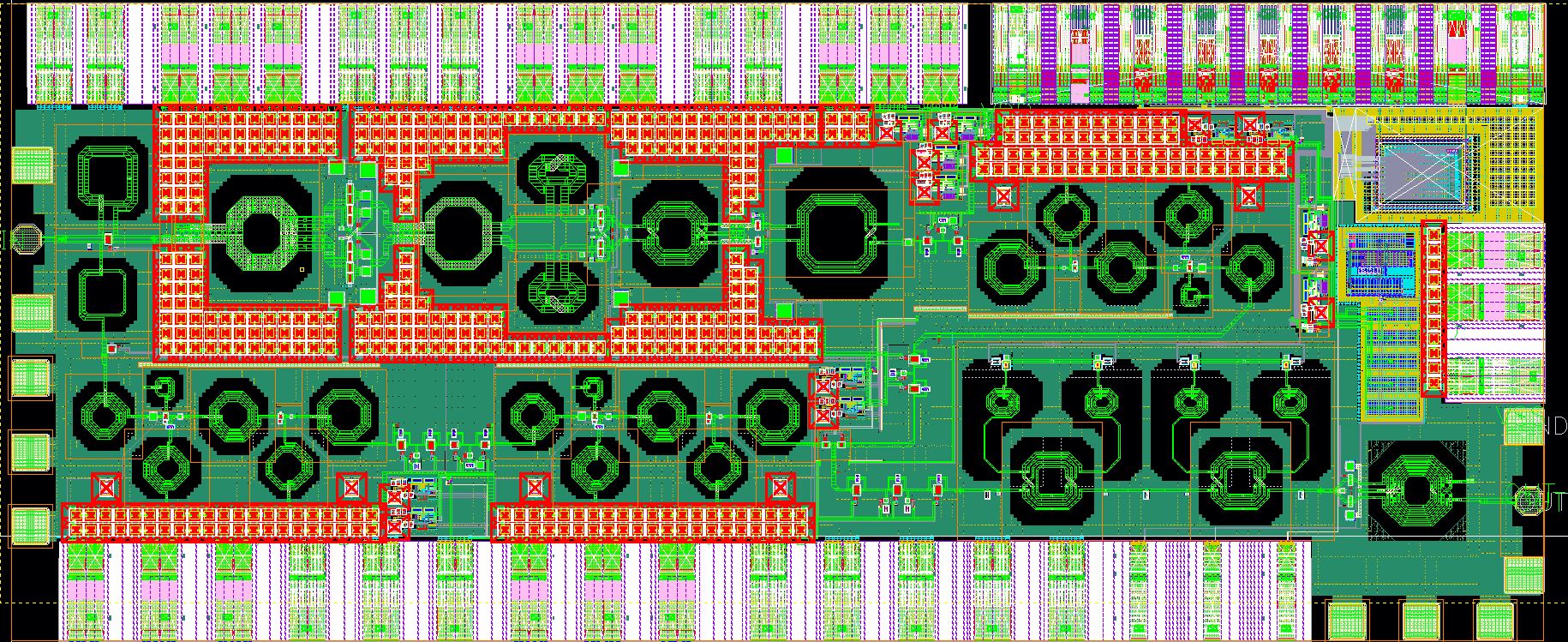

- 레이아웃 사진 -
|
|||
