| IP명 | On Chip Switched Capacitor DC-DC Voltage Regulator for PIM and DNN Accelerators | ||
|---|---|---|---|
| Category | Mixed | Application | Power |
| 실설계면적 | 4㎛ X 2㎛ | 공급 전압 | 1.8V |
| IP유형 | Hard IP | 동작속도 | 100MegHz |
| 검증단계 | Silicon | 참여공정 | SF028-2301 |
| IP개요 | To efficiently provide power to PIM and DNN accelerators, an on-chip switched capacitor DC-DC voltage regulator has been designed. The regulator utilizes body biasing, which demonstrates outstanding performance in FD-SOI. | ||

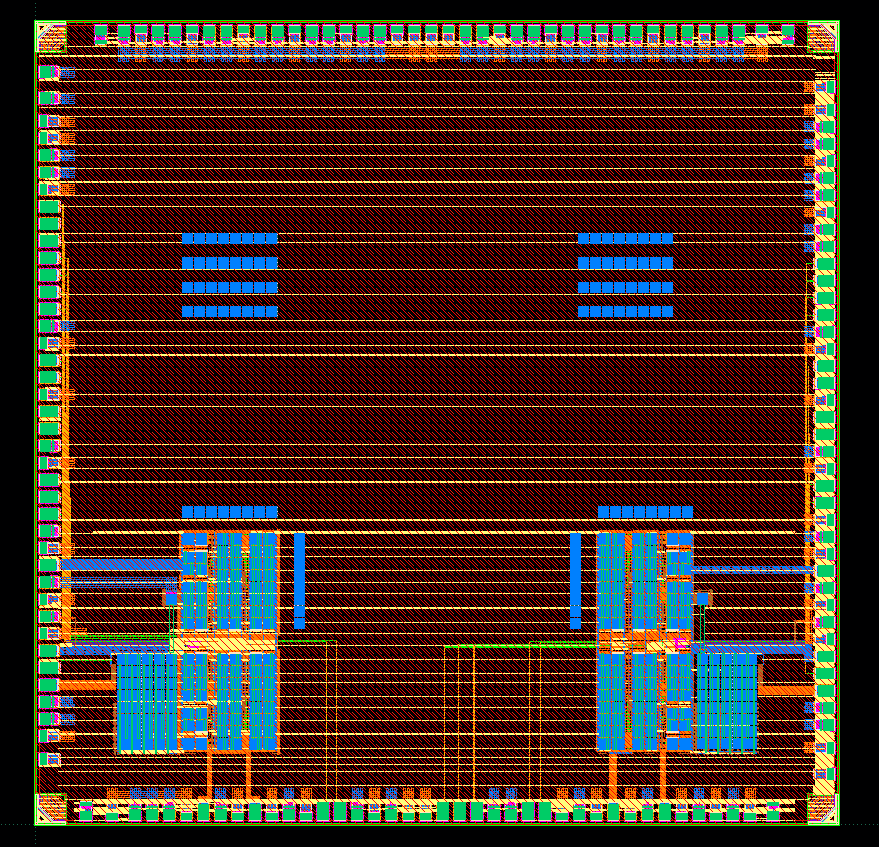

- 레이아웃 사진 -
|
|||
