| IP명 | Maximum VCR 60V-to-1V Hybrid Buck DC-DC Converter | ||
|---|---|---|---|
| Category | Digital | Application | PMIC(DC-DC converter) |
| 실설계면적 | 3.55㎛ X 3.55㎛ | 공급 전압 | 60V |
| IP유형 | Hard IP | 동작속도 | 500KHz |
| 검증단계 | Silicon | 참여공정 | SB130-2501 |
| IP개요 | To supply power to servers efficiently, we designed an on-chip hybrid DC-DC voltage regulator. By employing LDMOS devices, the regulator achieves a high voltage-conversion ratio and exhibits excellent performance in a 130 nm BCDMOS process. | ||

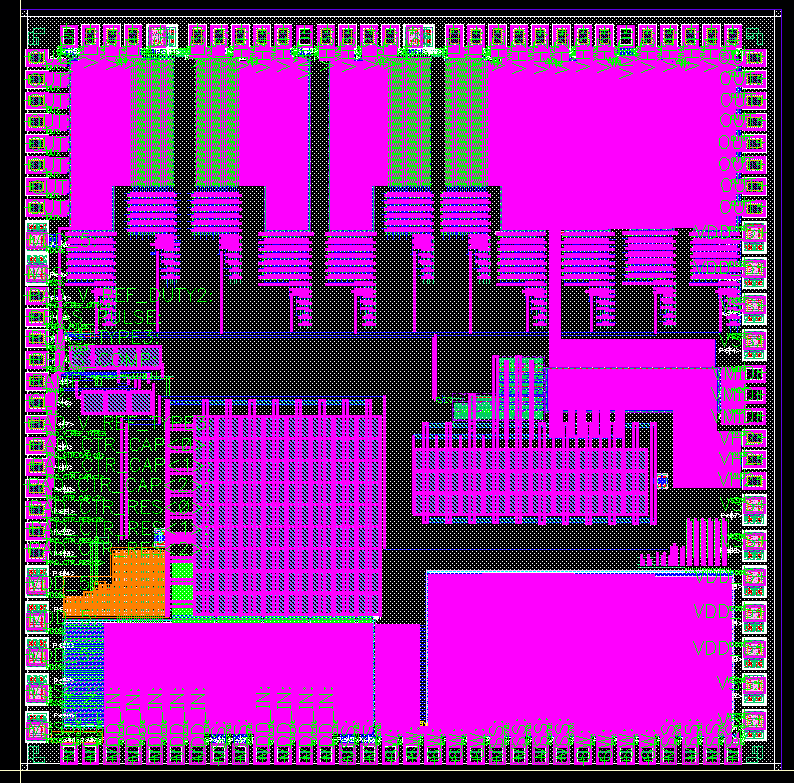

- 레이아웃 사진 -
|
|||
