| IP명 | Switched-Capacitor Symmetric Bidirectional Energy Transfer of Automotive application | ||
|---|---|---|---|
| Category | Analog | Application | PMIC |
| 실설계면적 | 5㎛ X 5㎛ | 공급 전압 | 48V/12VV |
| IP유형 | Hard IP | 동작속도 | 1MHz |
| 검증단계 | Silicon | 참여공정 | HM-2503 |
| IP개요 | This work introduces a bidirectional hybrid converter that utilizes a symmetrical switched capacitor topology. This architecture is key to enabling a wide voltage conversion range and achieving fully soft-charging characteristics. The converter is designed to operate efficiently across a broad input voltage range of 12 V to 48 V, delivering a regulated output from 5 V to 12 V. The design is implemented in a 180nm BCD process, occupying a chip area of 5x5mm2. | ||

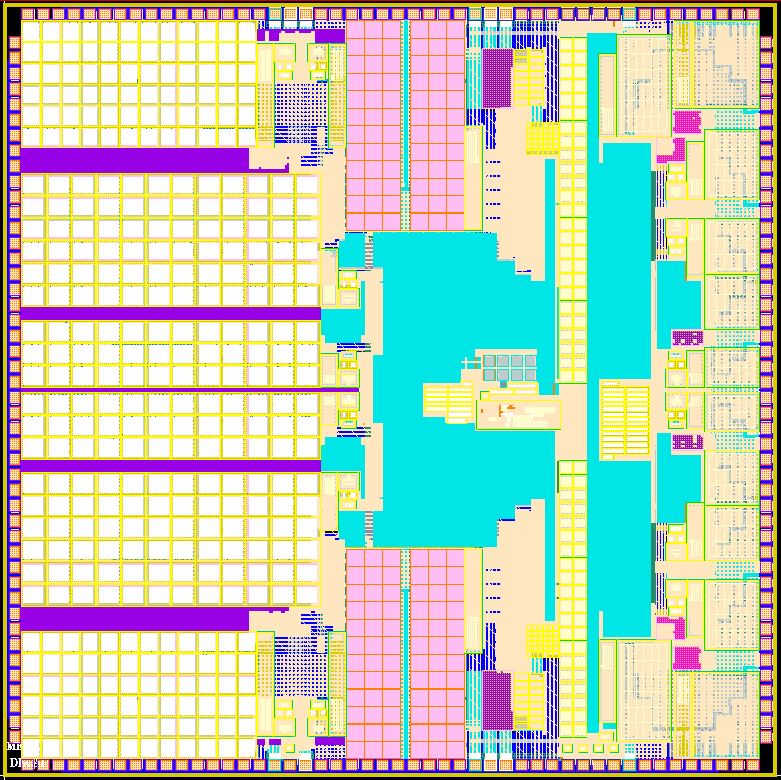

- 레이아웃 사진 -
|
|||
