| IP명 | Hybrid High Step-Down DC-DC Converter | ||
|---|---|---|---|
| Category | Analog | Application | Mobile, Compute Power Delivery |
| 실설계면적 | 5㎛ X 5㎛ | 공급 전압 | 12V, 5VV |
| IP유형 | Hard IP | 동작속도 | 1MHz |
| 검증단계 | Silicon | 참여공정 | DB180-2601 |
| IP개요 | This work presents a 12 to 1 Hybrid High Step Down DC-DC Converter for mobile application and compute power delivery with inductor current reduction and current balancing. The converter achieves 90.5% peak power efficiency and higher than 81% over the current load range of 0.7A to 9A. |
||

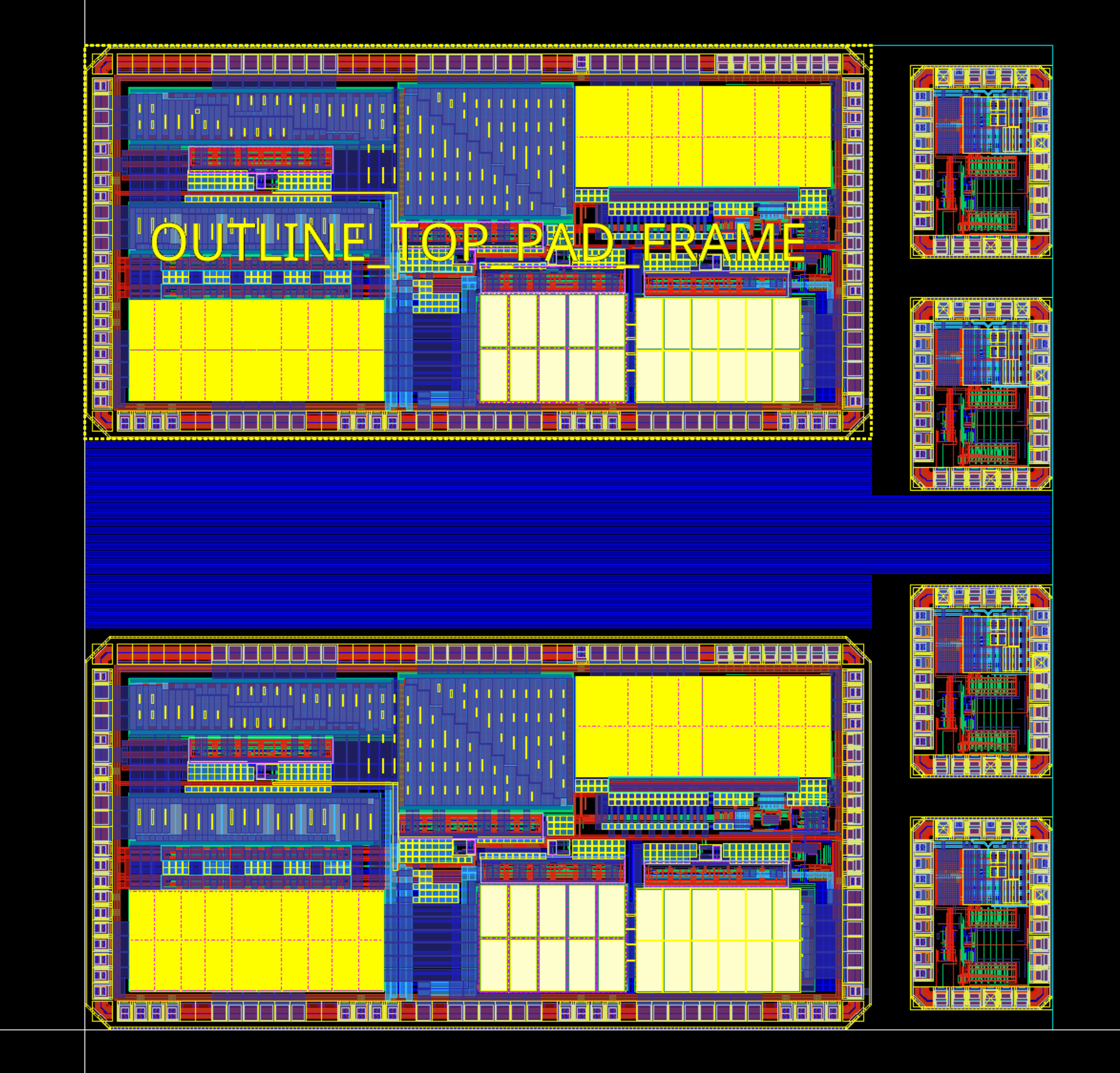

- 레이아웃 사진 -
|
|||
