| IP명 | 전류 재사용 Gm-boosting 기술을 이용한 MedRadio 대역에서의 170uW 저잡음 증폭기 | ||
|---|---|---|---|
| Category | Analog | Application | Bluetooth |
| 실설계면적 | 3.5㎛ X 3.5㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 2.4GHz |
| 검증단계 | Simulation | 참여공정 | SS65-1803 |
| IP개요 | This paper proposes a 401MHz － 406MHz low noise amplifier for MedRadio applications. The proposed low noise amplifier adopts a common gate amplifier topology using current reuse gm-boosting technique. The proposed LNA shows better performance of voltage gain and noise figure than the conventional gm-boosted common gate amplifier in the same power consumption. The proposed current-reuse gm-boosted low noise amplifier achieves a voltage gain of 22 dB, a noise figure of 2.95 dB, and IIP3 of －17 dBm while consuming 170 μW from a 0.5 V supply voltage in 0.13μm CMOS process. |
||

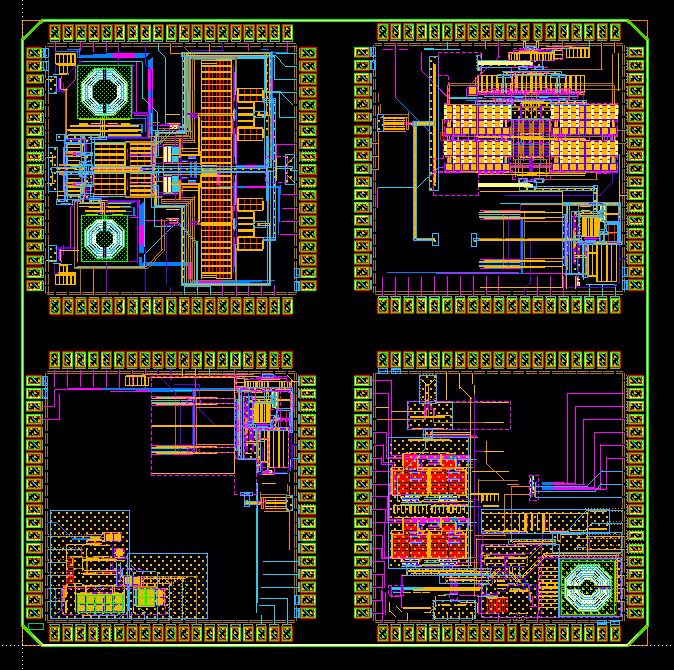

- 레이아웃 사진 -
|
|||
