| IP명 | An Ultra-Low Power 2-5GHz Injection-Locked QuadratureClock Generator for Low-Power Clock Distribution in HBM | ||
|---|---|---|---|
| Category | Mixed | Application | 메모리 |
| 실설계면적 | 1㎛ X 1㎛ | 공급 전압 | 0.9/1.8V |
| IP유형 | Hard IP | 동작속도 | 2.5GHz |
| 검증단계 | Silicon | 참여공정 | HM-2502 |
| IP개요 | This work presents an injection-locked quadrature clock generator (IL-QCG)-based low-power CDN for HBM. Distributing a single, lower-frequency signal including all quadrature phases of SIN in a rotating order, this work reduces clock distribution power by 1/17. The IL-QCG suppresses the jitter of SIN and PSIJ while restoring the accurate high-frequency quadrature clocks, SOUT, locally at the DQ-group side. Its instant phase alignment allows SOUT to toggle instantly without a continuous clock. |
||

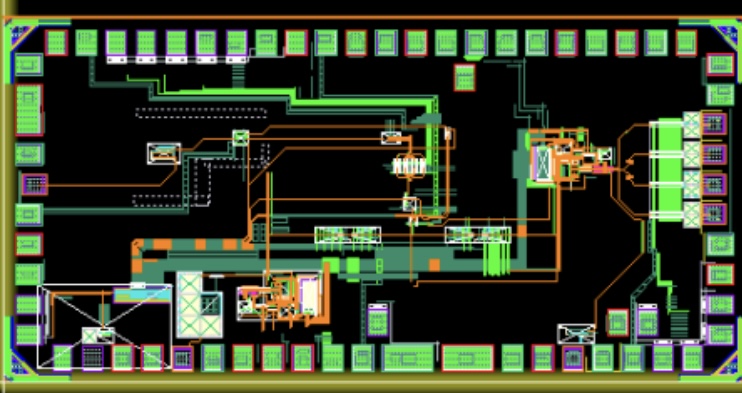

- 레이아웃 사진 -
|
|||
