| IP명 | TD MAC chip | ||
|---|---|---|---|
| Category | Mixed | Application | AI chip |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 5GHz |
| 검증단계 | Silicon | 참여공정 | SS028-2502 |
| IP개요 | This IP implements a time-domain Computing-in-Memory (CIM) system. It utilizes delay cells to realize MAC operations by converting time delays into digital values. To ensure computation efficiency, a low-power Time-to-Digital Converter (TDC) was integrated. Finally, a multi-bit CIM was achieved by implementing the DSA (Domain Specific Architecture) through the Place and Route (P&R) process. | ||

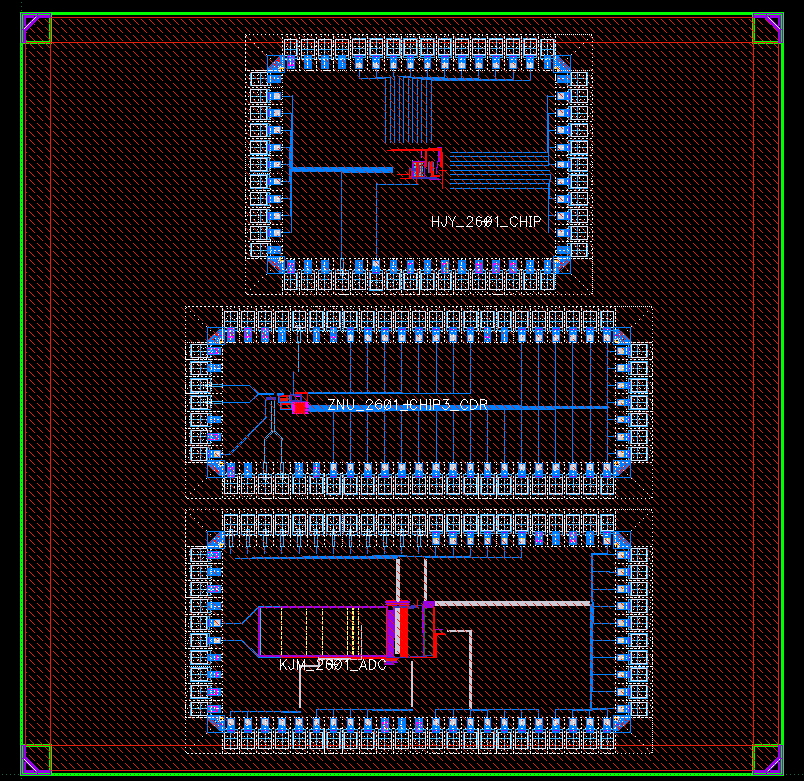

- 레이아웃 사진 -
|
|||
