| IP명 | Calibration-Free Noise Shaping SAR ADC with PVT-Robust Residue Processing Technique | ||
|---|---|---|---|
| Category | Analog | Application | Analog Circuits |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 32MHz |
| 검증단계 | Silicon | 참여공정 | SS028-2502 |
| IP개요 | A Noise-Shaping SAR ADC with 13.5-bit ENOB at 1MHz-BW, achieving steady performance across PVT variation by replacing analog circuit-based NS filter with digital circuit blocks. | ||

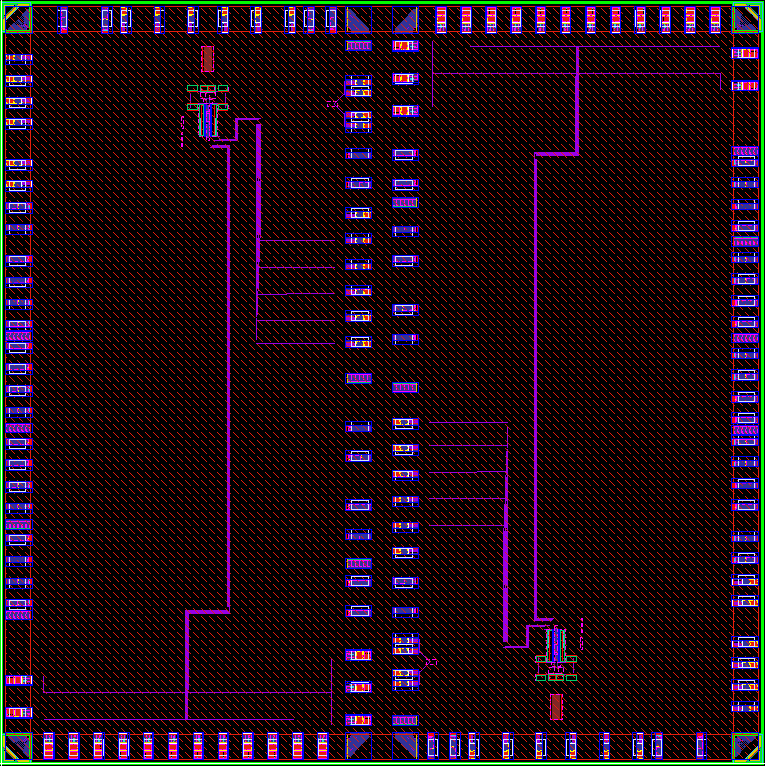

- 레이아웃 사진 -
|
|||
