| IP명 | Design of a CMOS Wideband Signal Source for Sub-THz VNAX Applications | ||
|---|---|---|---|
| Category | Analog | Application | Wireless Communications |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 140GHz |
| 검증단계 | Silicon | 참여공정 | SS028-2502 |
| IP개요 | we presents two key building blocks of a fully integrated frequency extender module for vector network analyzer (VNAX) applications in sub-terahertz (sub-THz) frequency ranges. A harmonic recycling sixtupler and a wideband distributed amplifier are co-designed to enable a compact and scalable on-chip solution. The proposed sixtupler efficiently generates 6f₀ harmonic with a simulated peak output power of –8.3 dBm and a wide 3-dB bandwidth of 111–165 GHz, achieving high spurious harmonic suppression across the D-band. The distributed amplifier delivers a flat simulated gain of 10 dB across 1–136 GHz, ensuring sufficient LO drive power to the down-conversion mixers. Fabricated in a 28 nm CMOS process, the proposed components demonstrate the feasibility of CMOS-based VNAX frequency extension, overcoming the limitations of conventional discrete and BiCMOS based modules. This architecture establishes a foundation for future development of multi-band, fully integrated VNAX systems with enhanced measurement flexibility and reduced system complexity. |
||

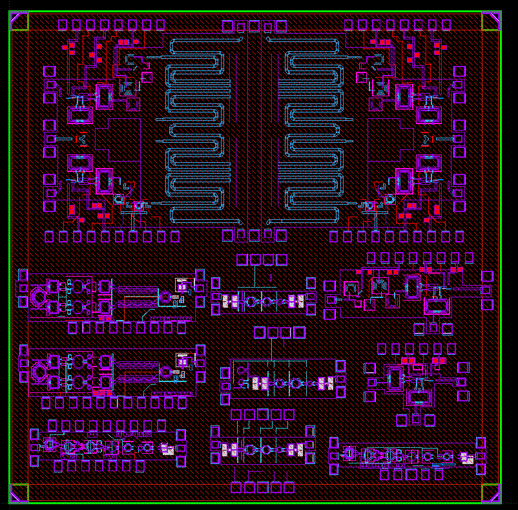

- 레이아웃 사진 -
|
|||
