| IP명 | 60GHz 4-Channel Beam-tapering Phased-array Transmitter in 28-nm CMOS | ||
|---|---|---|---|
| Category | Analog | Application | 5G Millimeter-wave IC |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 60GHz |
| 검증단계 | Silicon | 참여공정 | SS028-2502 |
| IP개요 | Abstract - This paper reports a 60 GHz four-element beamtapering phased-array transmitter for a lower side-lobe level. To reduce the side-lobe level, vector-sum phased shifter (VSPS) with low phase and gain variation and variable gain power amplifier (VGPA) with low impedance and phase variation are proposed. The proposed VGPA not only has low phase and impedance variations during gain control, but also shows high linearity under low supply voltage. Analysis reveals that proposed VGPA reduces gain/phase error in vector modulation. In addition, the transformer-based current-reuse technique is adopted to enhance the gain of the phased array channel while consuming low DC power. With the proposed VSPS and VGPA, the proposed 1-channel compensates the gain variance of phase shifters and, simultaneously, excites the nonuniform amplitude to each array element. Implemented in a commercial 28 nm CMOS process, the integrated array chip displays a low RMS gain error and phase error in the frequency range 57–66 GHz, while consuming a low dc power and occupying a small chip area. The fabricated array will be integrated with the antenna to verify the beam-forming and beam-tapering operations. With proper gain and phase control, the integrated array decreases the side-lobe level by up to 8.7 dB. |
||

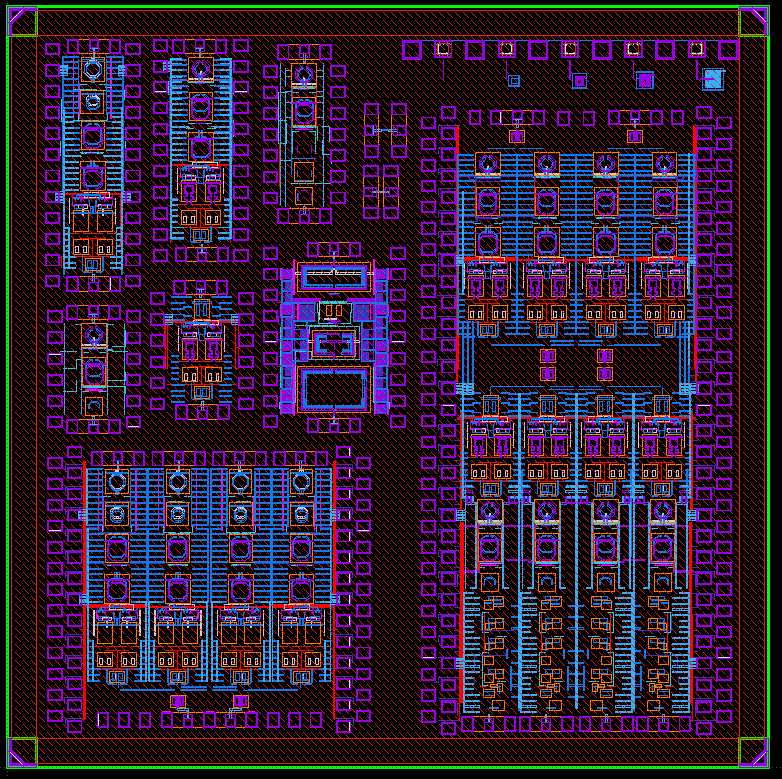

- 레이아웃 사진 -
|
|||
