| IP명 | A High-Efficiency D-band 4-Channel Beamforming Transceiver using LO Vector Modulator in 65nm CMOS | ||
|---|---|---|---|
| Category | RF | Application | Communication |
| 실설계면적 | 3㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 150GHz |
| 검증단계 | Silicon | 참여공정 | HM-2502 |
| IP개요 | A 65nm CMOS 4-channel D-band transceiver utilizing vector modulator-based LO beamforming for high-efficiency sub-THz 6G communications. | ||

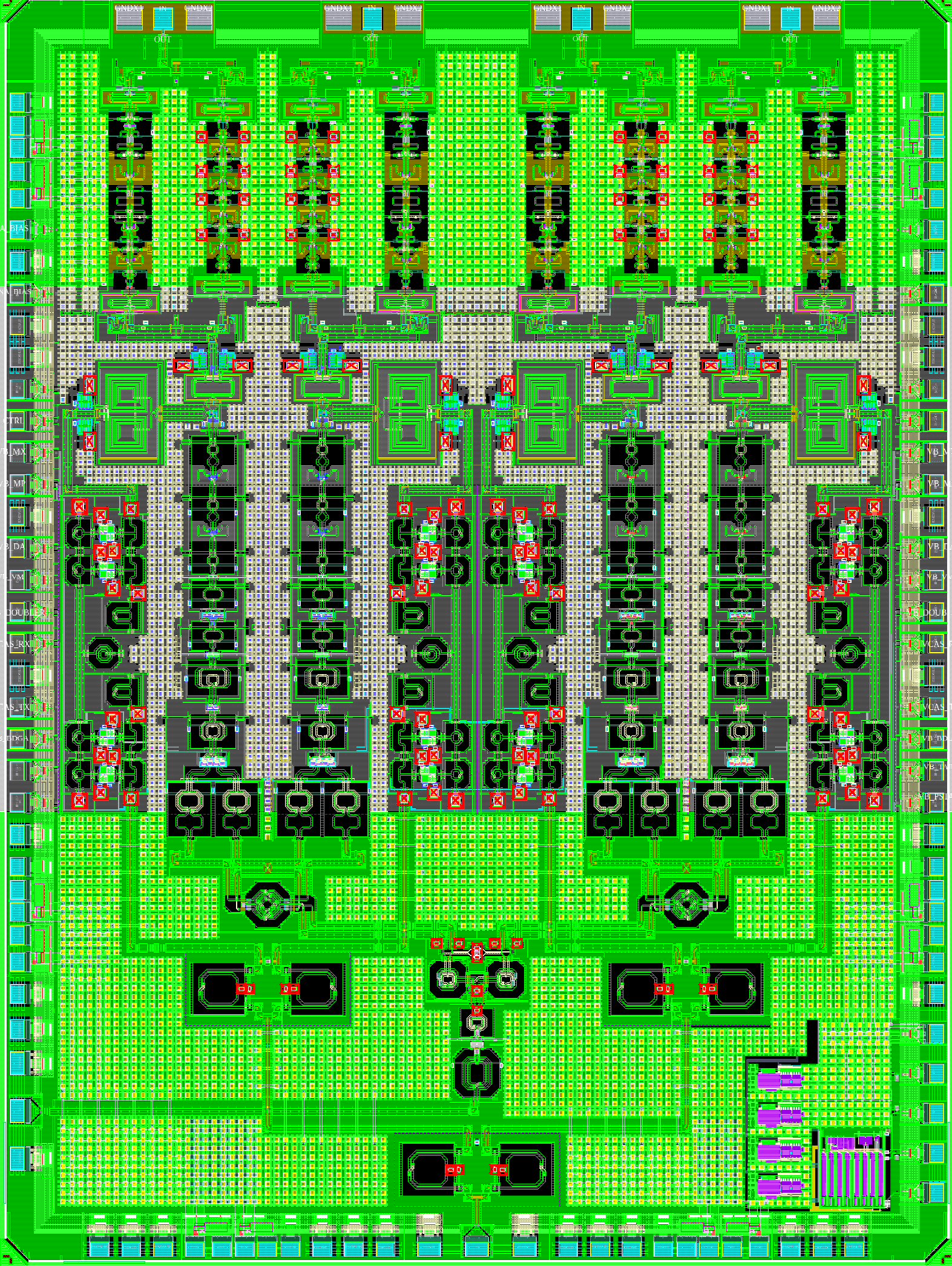

- 레이아웃 사진 -
|
|||
