| IP명 | A Compact Sub-THz 8-Way Power Amplifier With a Doubly Coupled Slotline Combiner | ||
|---|---|---|---|
| Category | Analog | Application | wireless com. |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 120GHz |
| 검증단계 | Silicon | 참여공정 | SF028-2601 |
| IP개요 | This work presents a compact sub-terahertz (sub- THz) power amplifier (PA) centered at 120 GHz based on an area- efficient differential 8-way power-combining architecture. The proposed power amplifier employs slotline-based matching and combining networks together with a transformer-based interstage matching network to achieve compact implementation and efficient multi-way power combining. To further enhance area efficiency, a doubly coupled slotline-based combiner is introduced, allowing two PA cores to be integrated within a single combining structure. Simulation results show a peak small-signal gain of 16.6 dB at 113 GHz and a 3-dB bandwidth of 99.6–128 GHz. Over this frequency range, the simulated Psat is 16.0–17.6 dBm and the peak PAE is 6– 9%. The proposed architecture demonstrates the potential of compact slotline-based multi-way power combining for sub-THz PA applications such as imaging, radar, and high-resolution sensing systems. |
||

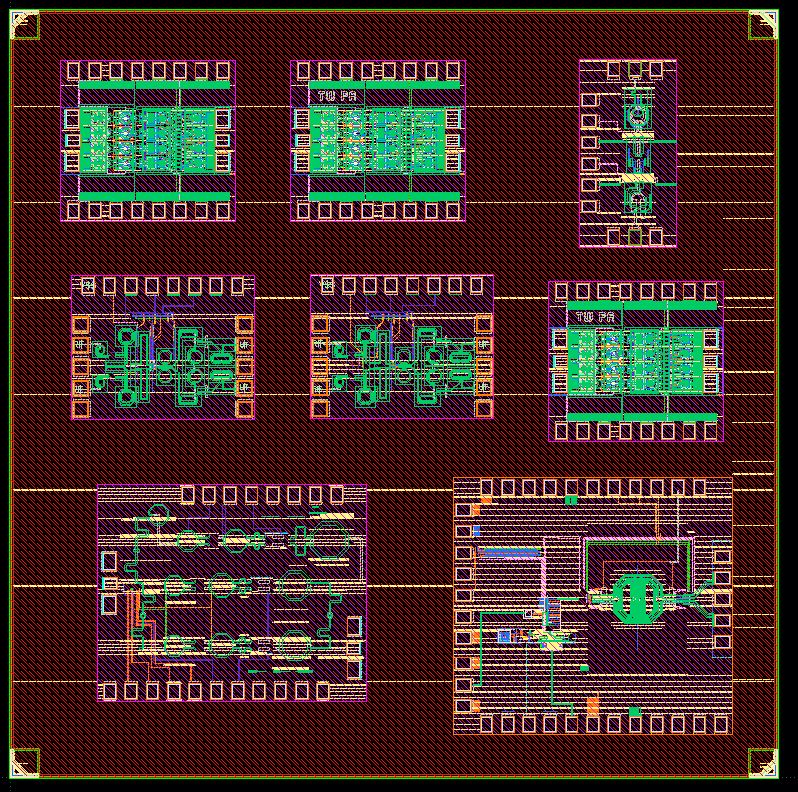

- 레이아웃 사진 -
|
|||
