| IP명 | A 1.5 GHz 4:1 Fully Integrated and Fully Soft-Charging DC-DC Converter Based on Complementary Electromagnetically Coupled Class-D LC Oscillators with Multi-Coupled Transformers | ||
|---|---|---|---|
| Category | Analog | Application | DC-DC converter |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 0.9V |
| IP유형 | 동작속도 | 1GHz | |
| 검증단계 | Silicon | 참여공정 | SF028-2601 |
| IP개요 | 4:1 fully integrated multicoupled complementary electromagnetically coupled class-D LC oscillator (MCC-EMLC) based DC-DC converter |
||

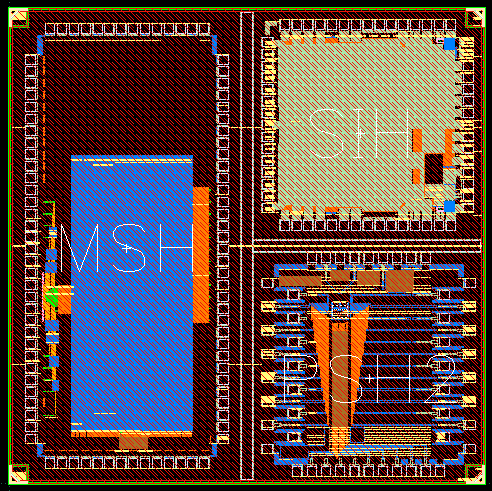

- 레이아웃 사진 -
|
|||
