| IP명 | A 4-Channel D-Band Bidirectional Transceiver with LO Beamforming Based on Vector Modulation | ||
|---|---|---|---|
| Category | Analog | Application | Transceiver |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1V |
| IP유형 | Hard IP | 동작속도 | 156GHz |
| 검증단계 | Silicon | 참여공정 | SF028-2601 |
| IP개요 | Designed key RF building blocks for a 4-channel D-band bidirectional transceiver with LO beamforming based on vector modulation, including a power amplifier (PA), frequency multipliers, and a bidirectional mixer. | ||

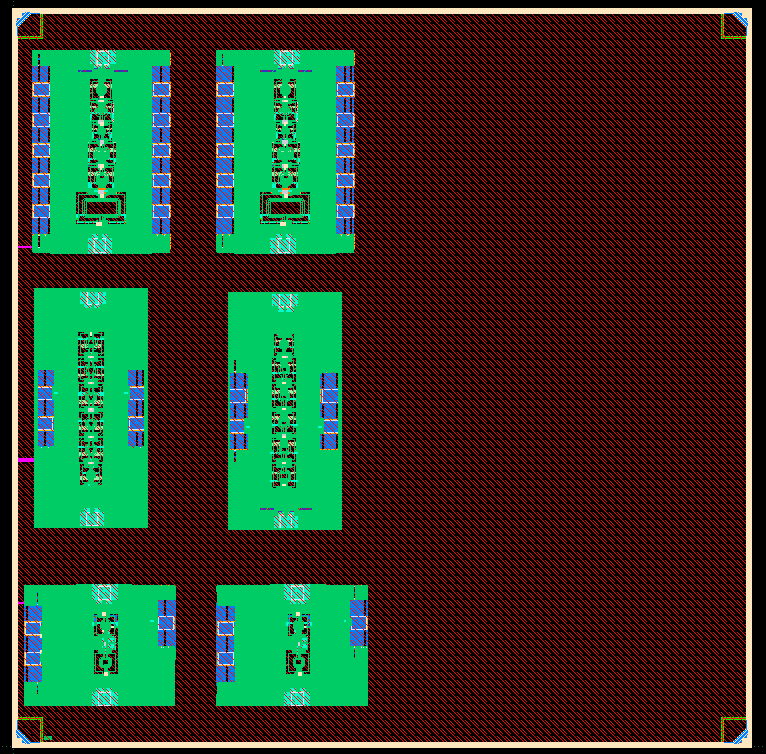

- 레이아웃 사진 -
|
|||
