IP명 | 5G Transceiver IC Design Using 180 Phase Hybrid coupler | ||
---|---|---|---|
Category | Analog | Application | 통신 |
실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 1.8V |
IP유형 | 동작속도 | 28.1GHz | |
검증단계 | Simulation | 참여공정 | SS65-1902 |
IP개요 | The isolation between transmitter and receiver for the radars is ultimately important since the transmitting radar signals can be penetrated the receiver directly in case a bad isolation is formed. This paper describes the isolation between the transceiver and the design of an integrated full duplexer using the ring hybrid coupler | ||

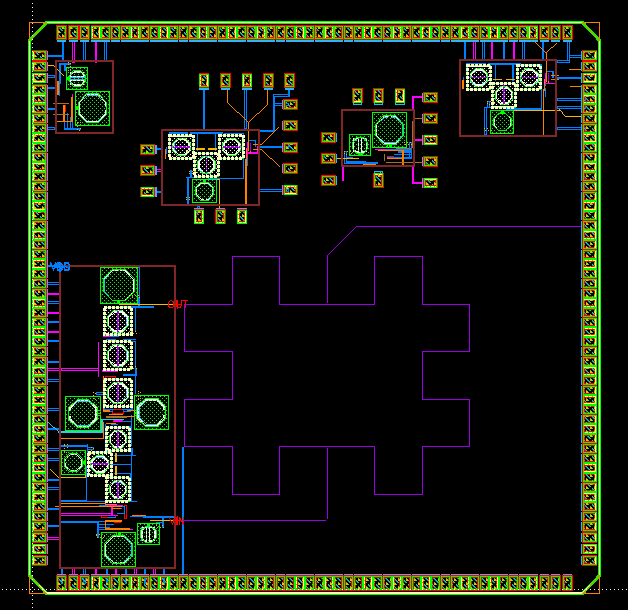

- 레이아웃 사진 - |
