IP명 A Switched Capacitor DC-DC Converter Using Novel Adaptive Conversion Ratio Switching Technique in a 180nm CMOS Process
Category Analog Application Power management IC, Energy harvest circuit.
실설계면적 3㎛ X 3㎛ 공급 전압 1.8V
IP유형 Hard IP 동작속도 1kHz
검증단계 Silicon 참여공정 HM-2001
IP개요 This chip presents an ultra-low power
Switched Capacitor DC-DC (SC DC-DC) Converter. The
chip will be fully integrated in 180nm CMOS process. The
expected efficiency and output voltage ripple of SC DC-DC
Converter can be achieved 92% and less than 5mV at 10mA
load current, respectively. Moreover, the circuit is able to
handle the wide range of output current from 1mA to 10mA.
The novel adaptive conversion ratio switching technique is
also proposed to improve the power efficiency at the
conversion boundary.

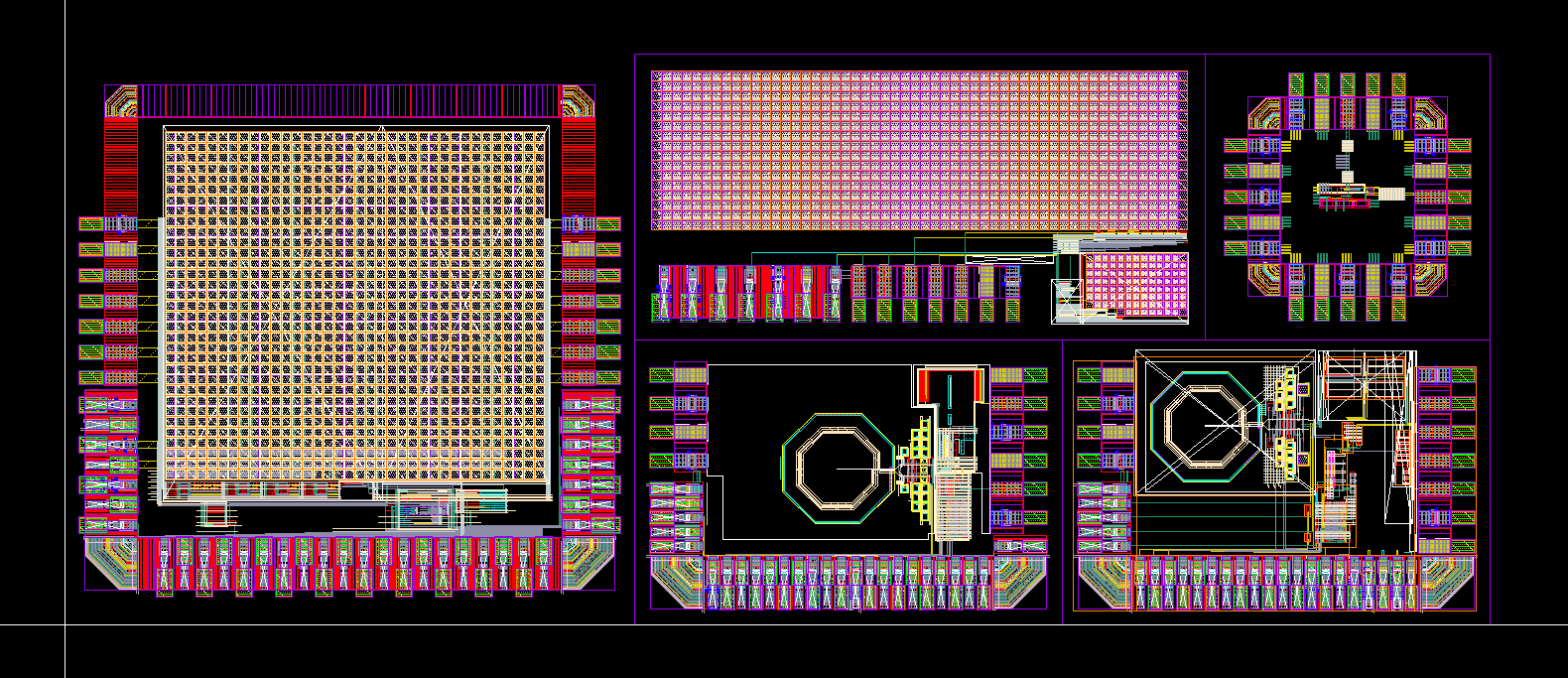

- 레이아웃 사진 -
