IP명 A 6T SRAM Computing-in-Memory Unit-Macro for Multibit CNN-based AI Edge Processors
Category Analog Application Machine Learning
실설계면적 3.4㎛ X 3.4㎛ 공급 전압 3.3V
IP유형 Hard IP 동작속도 900MHz
검증단계 Silicon 참여공정 MS180-2001
IP개요 Computing-in-memory (CIM) is a promising approach to reduce latency and improve the energy efficiency of deep neural network (DNN) for artificial intelligence (AI) edge processors. This design presents an energy-efficient static random access memory (SRAM) – CIM unit-macro using: 1) 6T SRAM cells for weighted CIM multiply-and-accumulate (MAC) operation to reduce area overhead and vulnerability to process variation; 2) a current steering digital to analog converter (DAC) and charge sharing multiplication scheme to increase the linearity; 3) a successive approximation analog to digital converter (SAR-ADC) within cell array to reduce area overhead and power consumption.

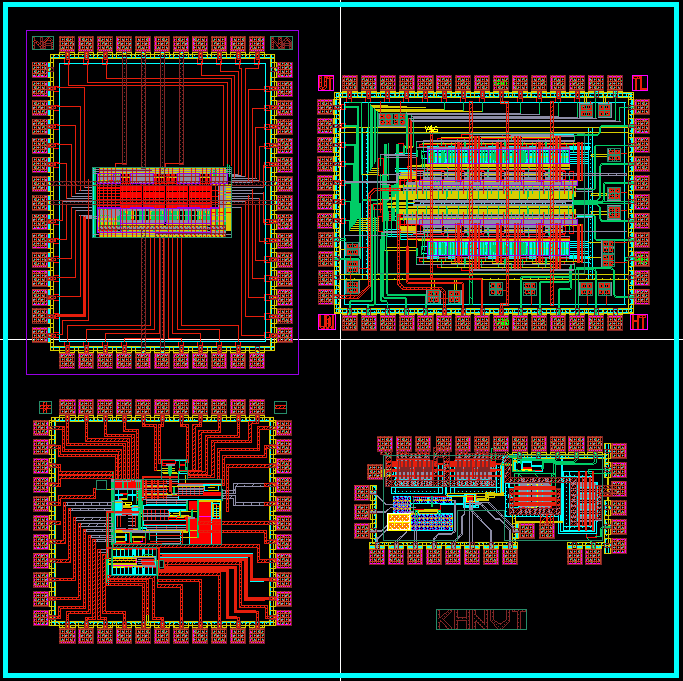

- 레이아웃 사진 -
