| IP명 | Miniaturization and eye diagram optimization techniques for high speed I/O bandwidth expansion circuits | ||
|---|---|---|---|
| Category | Analog | Application | bandwidth extension |
| 실설계면적 | 4㎛ X 4㎛ | 공급 전압 | 0.9-1.1V |
| IP유형 | Hard IP | 동작속도 | 40GHz |
| 검증단계 | Silicon | 참여공정 | SS28-2301 |
| IP개요 | Using the 28-nm CMOS process, we design and manufacture a high-speed I/O pad's bandwidth expansion circuit operating at 56Gbps. It uses bridged T-coil, known as the Inductive Peaking technique, and aims to get bandwidth above 40 GHz. | ||

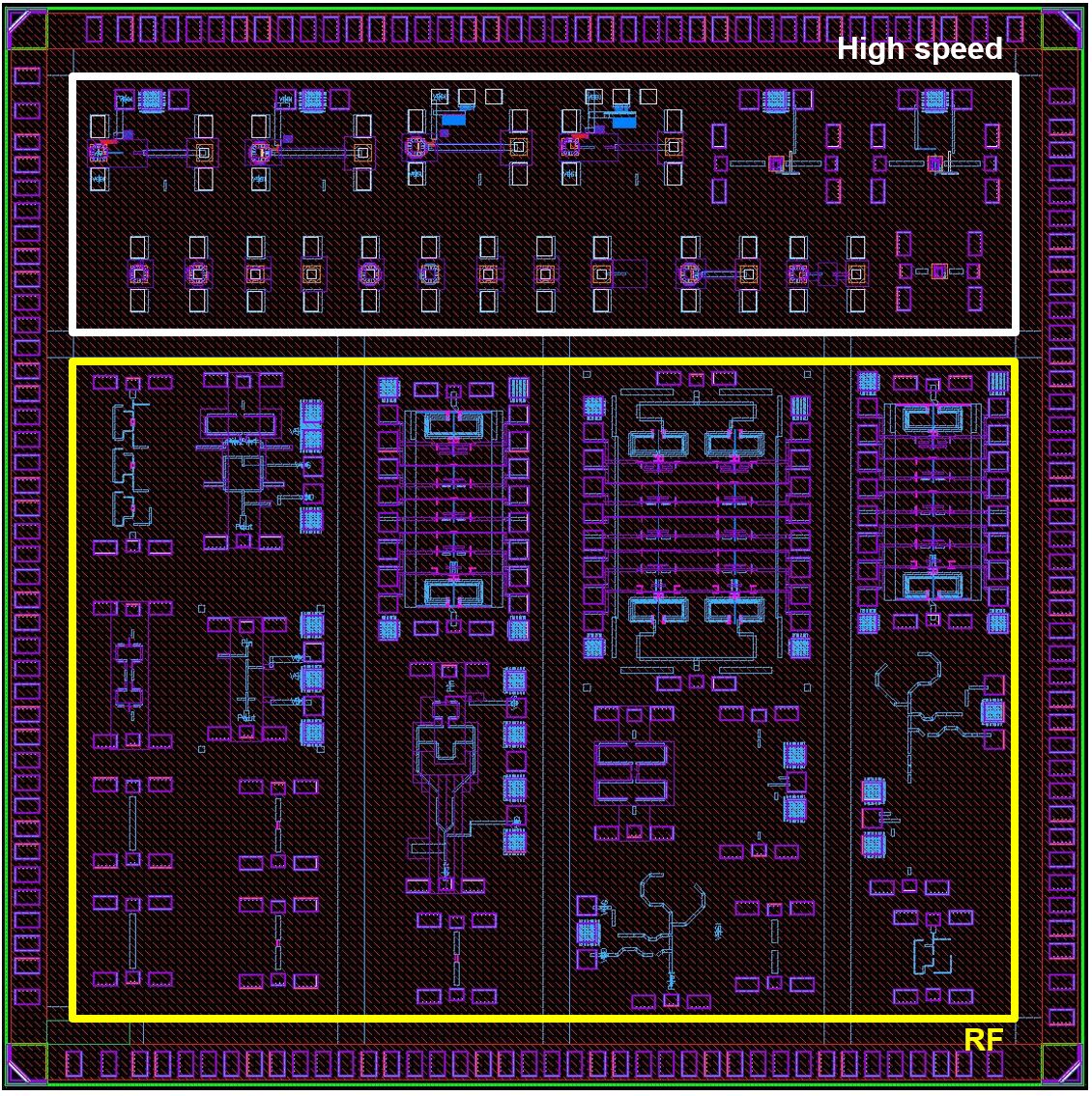

- 레이아웃 사진 -
|
|||
